ENVEA
AF22e
Features:
- SO2 (Sulfur Dioxide)
- UV Fluorescence
- 0-10 ppm (configurable)
- EN 14212, US-EPA, KECO, CNEMC
ENVEA

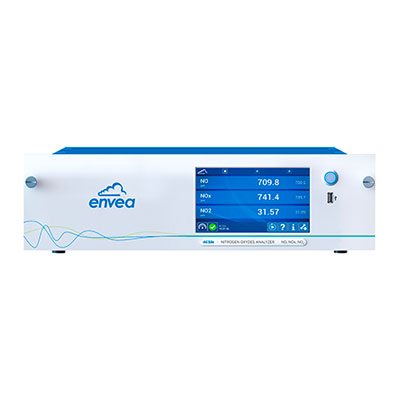

AC32e
Features:
- NO, NO2 (Nitrogen Oxide and Nitrogen Dioxide)
- Chemiluminescence
- 0-10 ppm (configurable)
- EN 14212, US-EPA, KECO, CNEMC
ENVEA
CO12e
Features:
- CO (Carbon Monoxide)
- IR gas filter correlation
- 0-100 ppm (configurable)
- EN 14212, US-EPA, KECO, CNEMC
ENVEA
O342e
Features:
- O3 (ozone)
- UV photometry
- 0-1 ppm (configurable)
- EN 14212, US-EPA, KECO, CNEMC
ENVEA

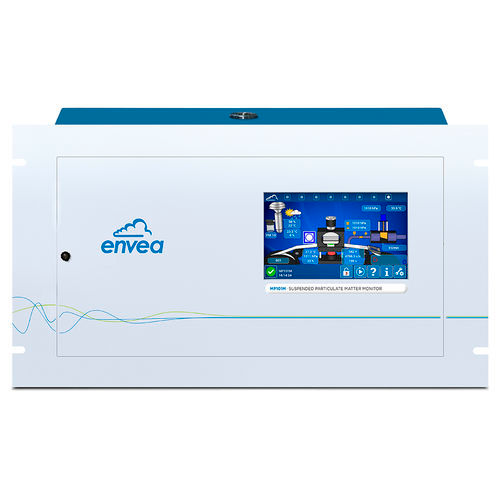

MP101M
Features:
- TSP, PM10, PM2.5, PM1 (via inlet change)
- Beta Gauge
- Reliable mass measurement
- Real time optical module available
- Regulatory monitoring, research
- EN 14212, US-EPA, KECO, CNEMC
ENVEA
OPM250
Features:
- TSP, PM10, PM2.5, PM1 (simultaneously)
- Light scattering (nephelometry)
- Real time, multi parameter device
- Regulatory monitoring, research
- EN 12341
ENVEA

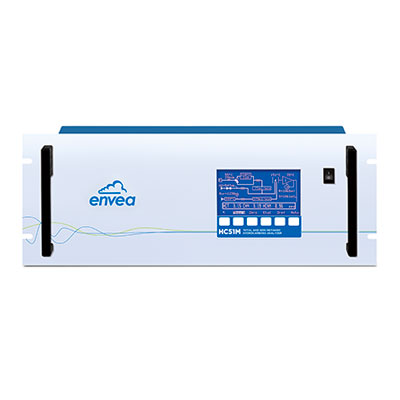

HC51M
Features:
- THC, CH4, NMHC
- Flame ionization detector (FID)
- FID combined with catalytic methane cutter (optional)
- Urban air toxics, industrial perimeter
- Compliant to US-EPA and EN 12619 (for THC)
ENVEA
VOC72e
Features:
- VOCs (BTEX, etc.)
- Photo Ionization Detector + Gas Chromatography
- Speciation capability, highly sensitive
- Urban air toxics, industrial perimeter
- Certified to EN 14662-3
ENVEA

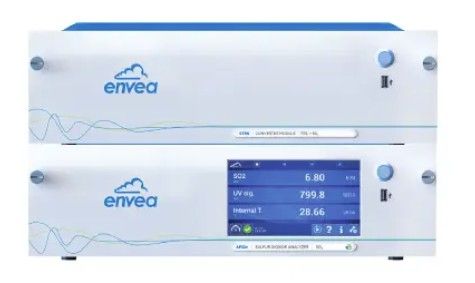

AF22e TRS
Features:
- Total reduced sulfur (TRS).
- UV fluorescence after conversion.
- Based on AF22e with thermal converter in an external rack for TRS.
- Odor monitoring, pulp & paper, water treatment, waste management, petrochemicals.Based off reference method.
ENVEA
AF22e H2S
Features:
- H2S (hydrogen sulfide)
- UV fluorescence after conversion
- Based on AF22e with built in thermal converter for H2S
- Odor monitoring, pulp & paper, water treatment, waste management, petrochemicals
- Based off reference method
ENVEA
AC32e NH3
Features:
- Ammonia (NH3)
- Chemiluminescence after conversion
- Based on AC32e thermal converter in an external rack for NH3
- Odor monitoring, pulp & paper, water treatment, waste management, petrochemicals
- Based off reference method
ENVEA

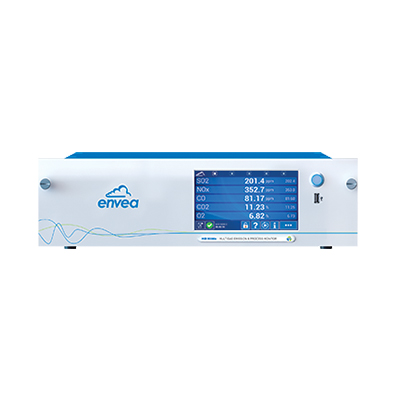

MIR 9000e
Features:
- NDIR-GFC multi-gas analyzer
- Automated drift control option
- Simultaneous multi-gas measurement of NOx, SO2, CO, O2, residual H2O, and optionally CO2, CH4 and N2O (greenhouse gases)
- Environmental-friendly and cost-saving analyzer, with ultra-low power consumption
- No compressed air required (if using a gas cooler)
- QAL1 certified according to EN 15267, QAL3 compliance as defined by EN 14181, U.S. EPA Compliance (40 CFR PART 60 & 75)
ENVEA

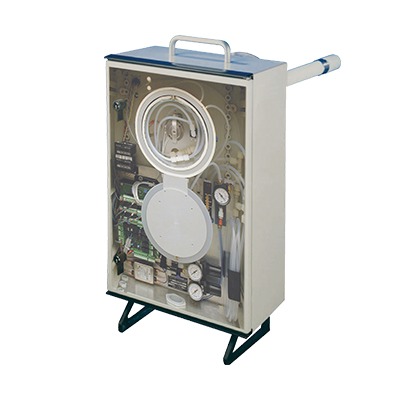

SEC™ BOX
Features:
- Stack gas sampling system
- Sampling probe equipped with double stage particulate filtration
- Direct span and zero gas injection for a complete system calibration
- Permeation-based drying system avoids loss of highly condensable gases (e.g. HCl, SO2, NO2 and HF)
- To be used with unheated analyzers such as MIR 9000, MIR 9000e, MIR 9000CLD
- Automatic back-flush function
ENVEA

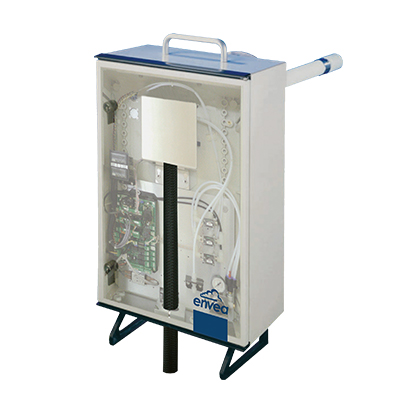

HOFI™ BOX
Features:
- Heated sampling system
- Double stage dust filtration
- Direct span and zero gas injection for a complete system calibration
- Automatic back-flush function
- To be used with heated analyzers such as MIR FT, MIR 9000H, Graphite 52M
- 190°C heated sampling system without any modification of the gas matrix including water content
ENVEA

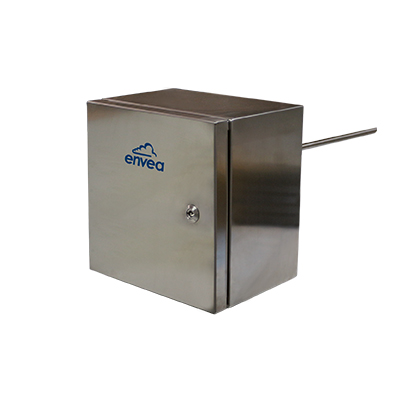

LCPD BOX
Features:
- Heated sampling system
- Stainless steel probe tube with optional reusable primary filter
- Check valve eliminates dead volume
- To be used with heated analyzers, or with unheated analyzers, such as MIR 9000, MIR 9000e, MIR-IS, by adding a cooling dryer
- Single stage dust filtration
- 190°C heated sampling system without any modification of the gas matrix including water content
